General Laboratory | Shaking Incubator

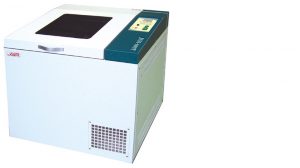

Shaking Incubator

Shaking Incubator



Main Specifications
▶Temp. Range : ambient +5℃ ~60℃ (JSSI-100T)

or +10℃ ~60℃     (JSSI-100C)
▶Shaking : 60 ~ 300 rpm

▶Controller : Digital PID Control
▶Accuracy : ± 0.1℃
▶Uniformity : ± 1.0℃
▶Capacity : 115 Liters

Precise Temp. & RPM Control
Integrated microprocessor digital PID controller provides temperature, shaking speed, timer and safety at once.

Equipped with wait-off timer, alarm, auto-tuning, in-built temperature calibration function

Temperature and shaking can be controlled together or independently with wait-off timer

Temperature from + 10℃ to 60℃ by ±0.2 ℃ accuracy

Feed-back logic control system provides shaking speed accuracy within ± 1 rpm and maximum up to 300 rpm

Dual digital LED displays PV and SV value.

Displays temp., rpm and time alternatively

Convenience
Transparent double layer tempered safety glass window for sample observation during operation without opening the door. Built-in working lamp
Shaking motion automatically cut-off to protect user from moving parts when door open.
Slow start and stop motion control provides smooth operation and prevent shock
Spring rack holds various shape of containers
Volume adjustable Flask Holder made by polycarbonate plastic



tabletop shaking incubator

Tabletop Shaking Incubator

JSSI-070 Series Tabletop Shaking Incubator is compact to fit laboratory table and ideal for any shaking application requiring controlled temperature and shaking speed for microbiology, cell biology, cell culture, tissue culture, biochemistry, molecular biology, environmental engineering, soil testing field temperature range from + 10°C to +70°C.

Specifications

Heating Forced Air Convection
Cooling CFC Free air cooled hermetically sealed compressor
Temp. Range JSSI-070T     : ambient + 5°C ~ 70°C
  JSSI-070C     : + 10°C ~ 70°C
Accuracy ± 0.2°C at 25.0 oC (JSSI-070C)
Shaking Motion Orbital
Speed Range 20 ~ 350 rpm (orbital)
Safety Over-Temperature Cut-Off
  Over Current Cut-Off



compact shaking incubator

Compact Shaking Incubator

Compact Shaking Incubator

JSSI-100 Series Compact Shaking Incubator is ideal for any shaking application requiring controlled temperature and shaking speed for microbiology, cell biology, cell culture, tissue culture, biochemistry, molecular biology, environmental engineering, soil testing field temperature range from + 10°C to +70°C.

Specifications

Heating Forced Air Convection
Cooling CFC Free air cooled hermetically sealed compressor
Temp. Range JSSI-100T     : ambient + 5°C ~ 70°C
  JSSI-100C     : + 10°C ~ 70°C
Accuracy ± 0.2°C at 25.0°C (JSSI-100C)
Shaking Motion Orbital or Reciprocal
Speed Range 20 ~ 350 rpm (orbital)
Safety Over-Temperature Cut-Off
  Over Current Cut-Off



stackable shaking incubator

Stackable Shaking Incubator

JSSI-200 Series Shaking Incubator is designed to save laboratory space by stacking one onto the other unit which shares less footprint. Front loading door system allow easy sample loading and unloading. Static shelf space above shaking platform can be used as general incubator for petri-dishes.

Specifications

Heating Forced Air Convection
Cooling CFC Free air cooled hermetically sealed compressor
Temp. Range JSSI-200T       : ambient + 5°C ~ 70°C
  JSSI-200C(L)   : + 10°C ~ 70°C
Accuracy ± 0.2°C at 25.0°C (JSSI-200C)
Shaking Motion Orbital or Reciprocal
Speed Range 20 ~ 350 rpm (orbital)
Safety Over-Temperature Cut-Off
  Over Current Cut-Off



floor standing shaking incubator

Floor Standing Shaking Incubator

JSSI-300 Series Shaking Incubator is ideal for any shaking application requiring controlled temperature and speed for microbiology, cell biology, cell culture, tissue culture, biochemistry, molecular biology, environmental engineering, soil testing field temperature range from + 10°C to +70°C and shaking speed from 20 ~ 350 rpm.

Specifications

Heating Forced Air Convection
Cooling CFC Free air cooled hermetically sealed compressor
Temp. Range JSSI-300T       : ambient + 5°C ~ 70°C
  JSSI-300C(L)   : + 10°C ~ 70°C
Accuracy ± 0.2°C at 25.0°C (JSSI-300C)
Shaking Motion Orbital or Reciprocal
Speed Range 20 ~ 350 rpm (orbital)
Safety Over-Temperature Cut-Off
  Over Current Cut-Off



two stack shaking incubator

Two Stack Shaking Incubator

JSSI-300 Series Shaking Incubator is ideal for any shaking application requiring controlled temperature and speed for microbiology, cell biology, cell culture, tissue culture, biochemistry, molecular biology, environmental engineering, soil testing field temperature range from + 10°C to +70°C and shaking speed from 20 ~ 350 rpm.

Specifications

Heating Forced Air Convection
Cooling CFC Free air cooled hermetically sealed compressor
Temp. Range JSSI-300T       : ambient + 5°C ~ 70°C
  JSSI-300C(L)   : + 10°C ~ 70°C
Accuracy ± 0.2°C at 25.0°C (JSSI-300C)
Shaking Motion Orbital or Reciprocal
Speed Range 20 ~ 350 rpm (orbital)
Safety Over-Temperature Cut-Off
  Over Current Cut-Off



four stack shaking incubator

Four Stack Shaking Incubator

JSSI-4CM Series Four Stack Shaking Incubator provides multiple shaking platforms in a temperature controlled chamber for big volume tissue culture applications.

Specifications

Heating Forced Air Convection
Cooling CFC Free air cooled hermetically sealed compressor
Temp. Range + 10°C ~ 70°C
Accuracy ± 0.5°C at 25.0°C (JSSI-4CM)
Shaking Motion Orbital or Reciprocal
Speed Range 20 ~ 350 rpm (orbital)
Safety Over-Temperature Cut-Off
  Over Current Cut-Off



multi-chamber shaking incubator

Multi-Chamber Shaking Incubator

JSSI-202 Series Shaking Incubator has two independent temperature controlled chambers with shaker for big volume tissue culture applications at different temperature and shaking speed.

Specifications

Configuration 2-Chamber 2-Shaker independent temperature and speed control
Heating Forced Air Convection
Cooling CFC Free air cooled hermetically sealed compressor
Temp. Range + 10°C ~ 70°C
Accuracy ± 0.5°C at 25.0°C
Shaking Motion Orbital or Reciprocal
Speed Range 20 ~ 350 rpm (orbital)
Safety Over-Temperature Cut-Off
  Over Current Cut-Off






If interested in this product, contact us here.
