General Laboratory | Muffle Furnace

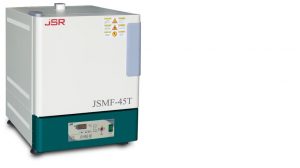

Muffle Furnace

Muffle Furnace



Main Specifications

▶Temp. Range : up to 1200℃
▶Controller : Digital Programmable PID
3 Pattern 16 segment
▶Heater : Kanthal embedded
▶Insulation : Vacuum Molded Ceramic
▶Capacity : 0.3 / 4.5 / 12 / 27 Liters

Insulation
Heavy-duty molded ceramic fiber insulation

Hard, abrasion resistant, designed to support heavy loads.

Precision PID Control
Microprocessor-based PID control, 3 programs (Pattern) and 16 segments for ramp (up and down) and dwell (time hold) temperature control.

Stable High Temperature
Temperature range up to 1200℃

Kanthal Heater
Heating elements embedded is molded cera-mic fiber insulation offer long service life, protection from harmful materials and mech-anical shock.
Kanthal-A1 heating element on all four sides of chamber for maximum heat transfer and chamber uniformity



max 1200C muffle furnace

Max 1,200 degrees C Muffle Furnace

Ideal for experiments and process needs high temperature up to 1,200°C such as chemical analysis, annealing loss determination, materials testing and ashing processes.

Specifications

Heating KANTHAL A-1 Exposed
Temp. Range Max. 1,200°C
Operating Temp. 1,100°C
Accuracy ± 3.0°C at 500°C (JSMF-30HT)
Control Programmable Microprocessor PID Control
  3 Pattern Internal Memory
  9 Ramps and 9 Dwells Segments
Safety Over-Temperature Cut-Off
  Over Current Cut-Off



max 1100 C muffle furnace

Max 1,100 degrees C Muffle Furnace

Ideal for experiments and process needs high temperature up to 1,100°C such as chemical analysis, annealing loss determination, materials testing and ashing processes.

Specifications

Heating KANTHAL A-1
Temp. Range Max. 1,100°C
Operating Temp. 1,000°C
Accuracy ± 3.0°C at 500°C (JSMF-30H)
Control Programmable Microprocessor PID Control
  3 Pattern Internal Memory
  9 Ramps and 9 Dwells Segments
Safety Over-Temperature Cut-Off
  Over Current Cut-Off



max 1000 C electric muffle furnace

Max 1,100 degrees C Electric Muffle Furnace

Ideal for experiments and process needs high temperature up to 1,000°C such as chemical analysis, annealing loss determination, materials testing and ashing processes.

Specifications

Heating KANTHAL A-1
Temp. Range Max. 1,000°C
Operating Temp. 800°C
Accuracy ± 3.0°C at 500°C (JSMF-30T)
Control Programmable Microprocessor PID Control
  3 Pattern Internal Memory
  9 Ramps and 9 Dwells Segments
Safety Over-Temperature Cut-Off
  Over Current Cut-Off




If interested in this product, contact us here.
